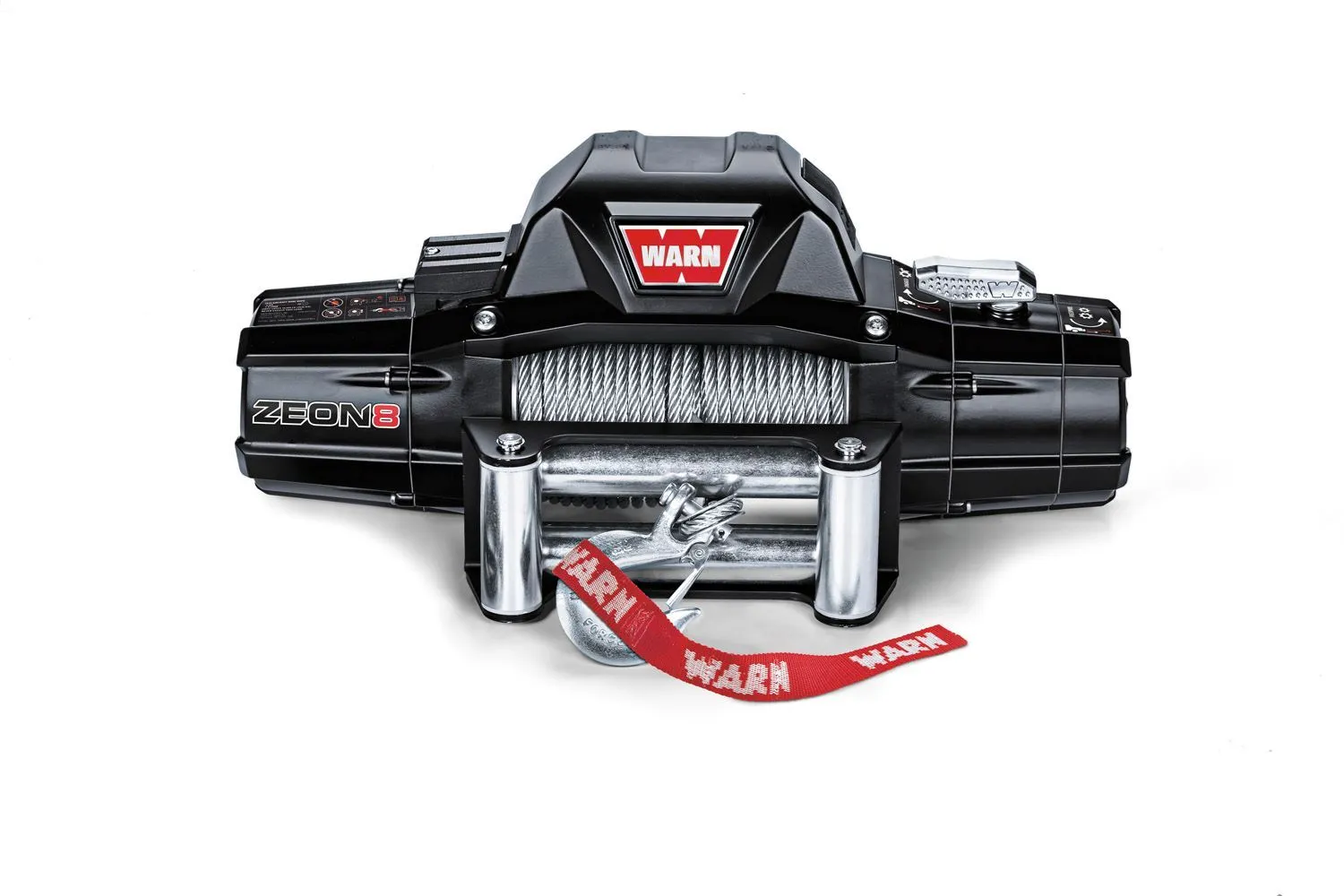

This Warn Industries ZEON (R) 8 12 volt electric Winch is vehicle mounted and has a pull capacity of 8,000 pound. It has a 100 feet wire rope. Note: This Winch will require winch mount for proper installation.
Don't let the good looks fool you. We've packed the ZEON 8 winch with all the performance features off-roaders said they needed most. From a heat dissipating brake down to an incredibly smooth planetary gear train, this winch is ready to hit the trail. The 8,000 Pounds pulling capacity, combined with a fast line speed make this winch the perfect choice for Jeep and SUV trail rigs.
- Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks
- Satin Black Powder Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion
- Improved Winch Sealing To Keep The Elements Out
- Large Diameter Winch Drum Reduces Rope Wear, Is Lightweight, And Has An Integrated Rope Anchor For Easy Rope Installation
- 8,000 Pounds Single Line Pulling Capacity
- 100 Foot Of Durable 5/16 Inch Galvanized Steel Wire Rope
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
| TYPE | Electric |
| MOUNT TYPE | Vehicle Mounted |
| RECOMMENDED USE | Vehicle Recovery |
| VOLTAGE | 12 Volt |
| ELECTRICAL CONTROL TYPE | Contactors |
| MOTOR TYPE | Series Wound |
| THERMAL SHUTOFF | No |
| DRIVE GEAR TYPE | Planetary |
| GEAR REDUCTION RATIO | 162:1 |
| FREE SPOOLING | Yes |
| BRAKE TYPE | Mechanical Cone |
| LINE DIAMETER (IN) | 5/16 Inch |
| LINE LENGTH (FT) | 100 Feet |
| LINE MATERIAL | Steel |
| FAIRLEAD TYPE | Roller |
| CONFORMS TO J706 STANDARDS | No |
| REMOTE TYPE | Handheld Remote Switch |
| MOUNTING HOLE QUANTITY | 4 |
| OPERATION TYPE | Automatic |

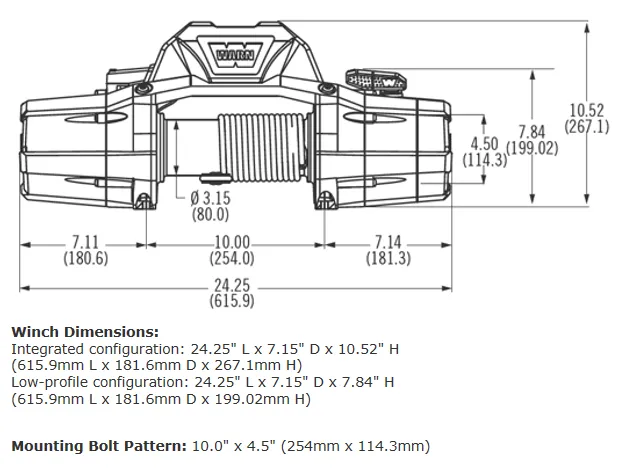

| MOUNTING PATTERN LENGTH (IN) | 10 Inch |
| MOUNTING PATTERN WIDTH (IN) | 4-1/2 Inch |
| INCLUDES MOUNTING HARDWARE | No |
| COLOR | Black |
| MAX AMP DRAW/ LINE PULL | 413 Amp Draw/ 8000 Pound |
| MAX LINE PULL/ LINE SPEED | 8000 Pound/ 6.2 Feet Per Minute |
