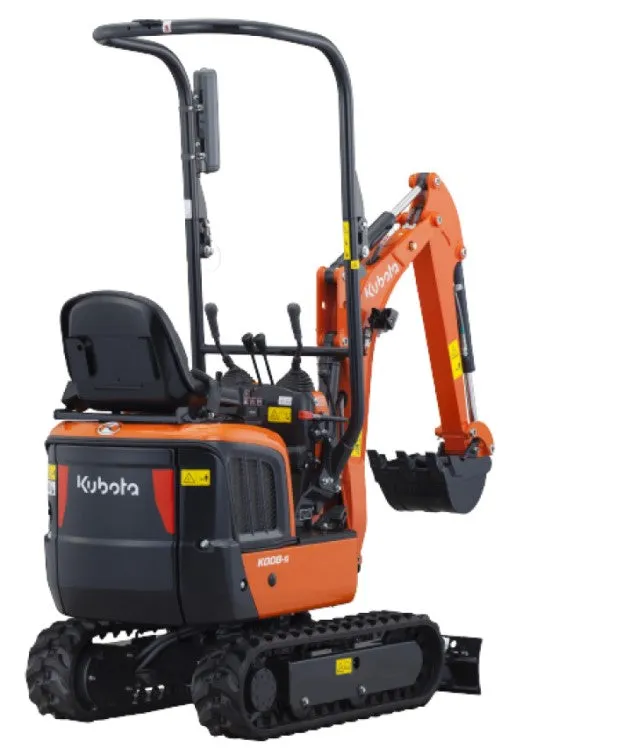

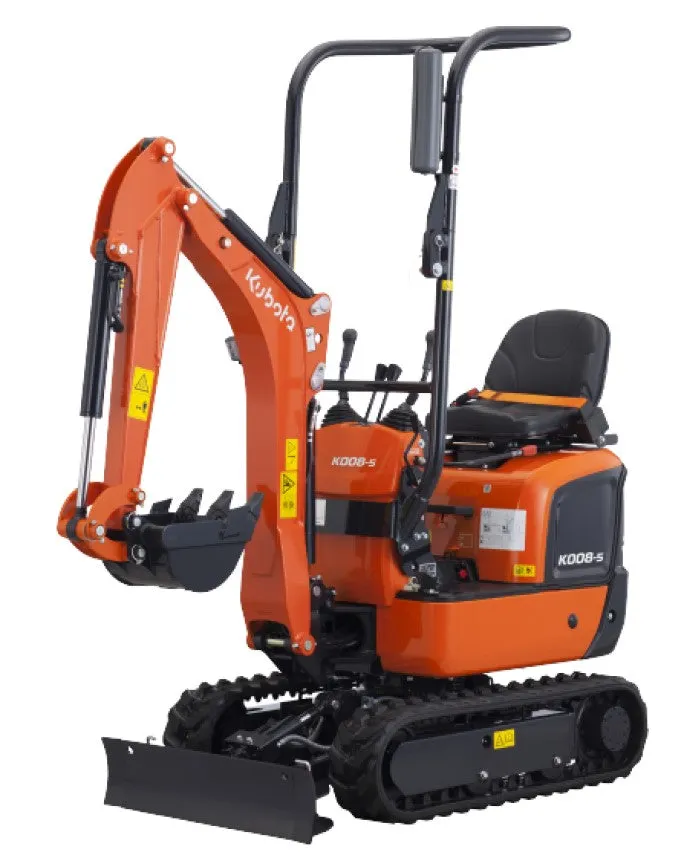

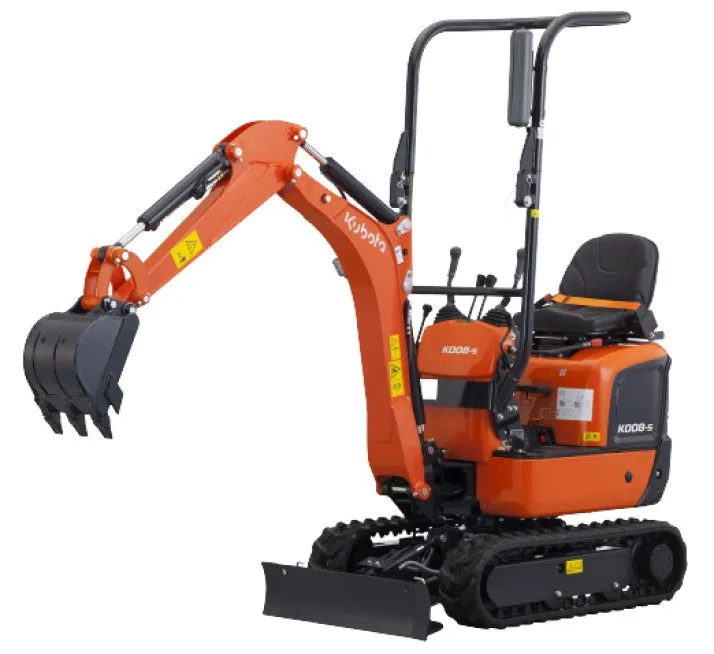

Kubota K008-5 Ultra-Compact Excavator

Work in tight and narrow spaces, even indoors with the Kubota KX008-5 Ultra-Compact Excavator. They may be compact but are designed to maximize performance and safety! The Adjustable Track Guage allows the operator to narrow the tracks, making the machine narrow enough to fit through most doorways as well as widening the tracks to gain more stability when digging!

Kubota K008-5 Ultra-Compact Excavator Exclusive Features:

Adjustable Track Guage - With easy, single-lever operation, the hydraulically adjustable track guage reduces in seconds down to 2'6" to navigate through narrow spaces and widens out to 3'3" for increased stability.
Boom Cylinder Protection Design - All of the hydraulic hoses are uniquely hidden and protected inside the boom. In addition, the boom cylinder is well protected due to it's location at the top of the boom.
TPSS - Standard equipment, allowing the operator to select the most familiar operating control pattern, either ISO or SAE.
Foldable ROPS - For additional versatility, a foldable rollover protective structure is fitted as standard on all U10-5 machines. Folding the ROPS down lets you easily transport the machine on trucks and travel through doorways to work indoors.
New LED Boom Work Light - The bright LED boom work light provides plenty of illumination for nighttime tasks.

Kubota K008-5 Ultra-Compact Excavator Specifications:

Engine

Model - D722-E4-BH-4US
Gross Output - 10.3 HP @ 2050 rpm
Net Output - 10.1 HP @ 2050 rpm
Displacement - 43.8 cu. in.
Fuel Capacity - 3.2 gal (12L)

Dimensions

Overall Length - 9'0"
Overall Height - 7'4"
Overall Width:
- Standard - 2'10"
- Narrow - 2'7"
Min. Ground Clearance - 5.9"
Operating Weight - 2315 lbs

Hydraulic System

Pump Capacity - 2.8 gpm x 2
Auxiliary Hydraulic Flow - 5.5 gpm
Max. Breakout Force (Bucket) - 2205 lbs
Max. Breakout Force (Arm) - 1012 lbs
Hydraulic Oil Capacity (Reservoir) - 3.6 gal (12.6L)
Hydraulic Oil Capacity (System) - 4.8 gal (17.1L)

Drive System

Travel Speed (Low) - 1.2 mph
Travel Speed (High) - 2.5 mph
Tumbler Distance - 2'11"
Crawler Length - 4'0"
Shoe Width - 7.1"

Swing System

Unit Swing Speed - 8.3 rpm
Boom Wing Angle (Left) - 55 degrees
Boom Wing Angle (Right) - 55 degrees

Blade

Dimensions
- Width (Standard) - 2'10"
- Width (Narrow) - 2'4"
- Height - 7.9"
Max Lift Above Ground - 7.9"
Max Drop Below Ground - 7.1"

The Kubota K008-5 Ultra-Compact Excavator is available at Kooy Brothers Equipment Ltd. located at 1919 Wilson Avenue in Toronto, Ontario.

*Price is subject to change without notice. Errors and omissions exempted.
